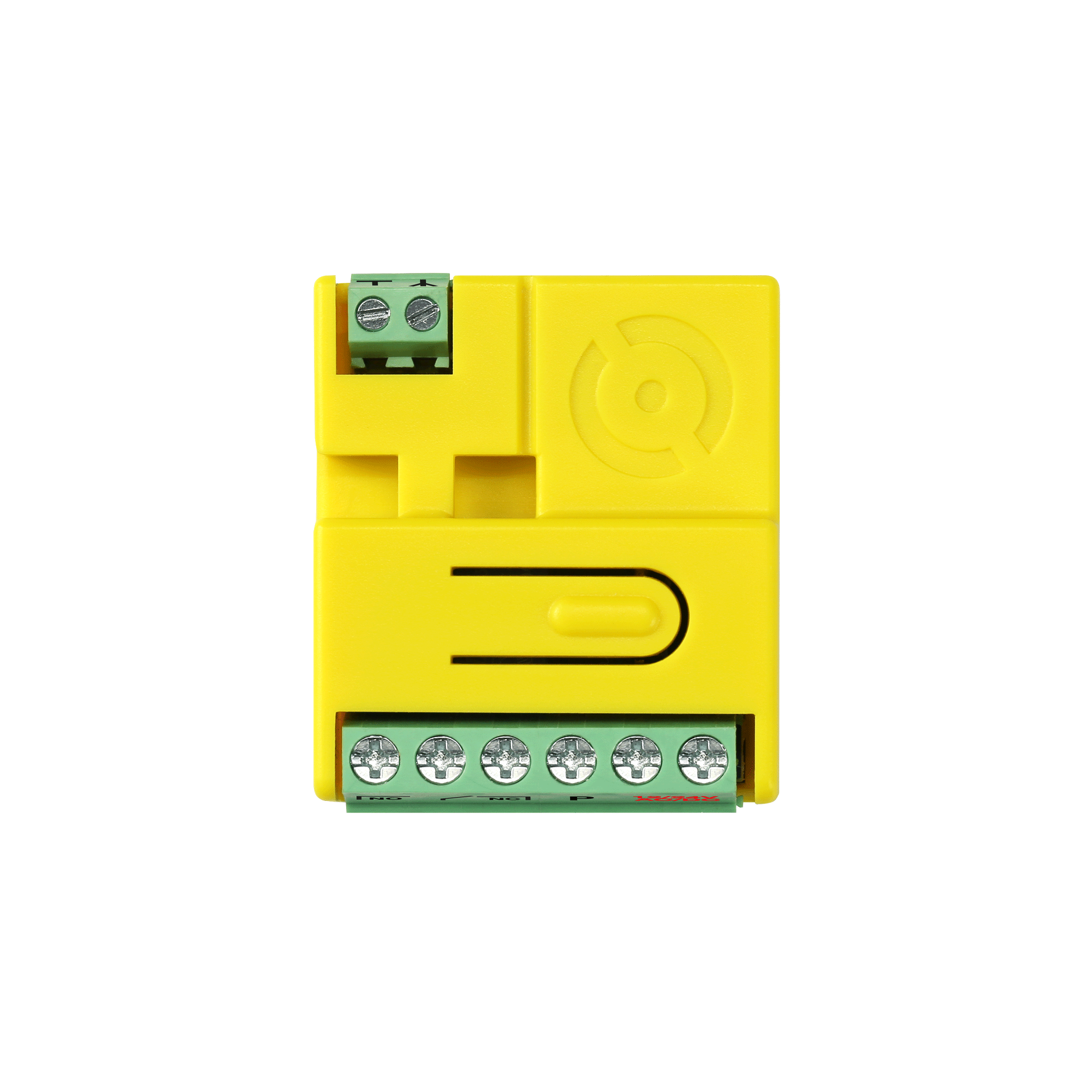

Basic information OSE Optosensor Adapter This device converts the pulse signal of the OSE optosensor into a NO/NC relay signal. This allows it to work with garage door controllers that do not have a dedicated input for connecting the OSE. The adapter also analyzes the status of the garage door's service door sensor, increasing the system's security and functionality.Principle of operationIf:– the adapter receives the pulse signal from the OSE optosensor,– the switch in the gate service door is in proper condition,– LED indicator shows the device status,to:– the OSE adapter relay is switched on and depending on the relay jumper position, the adapter PK relay is closed (NC) or open (NO).WARNING! If the gate does not have a service door, remove the "Door in gate" jumper.
