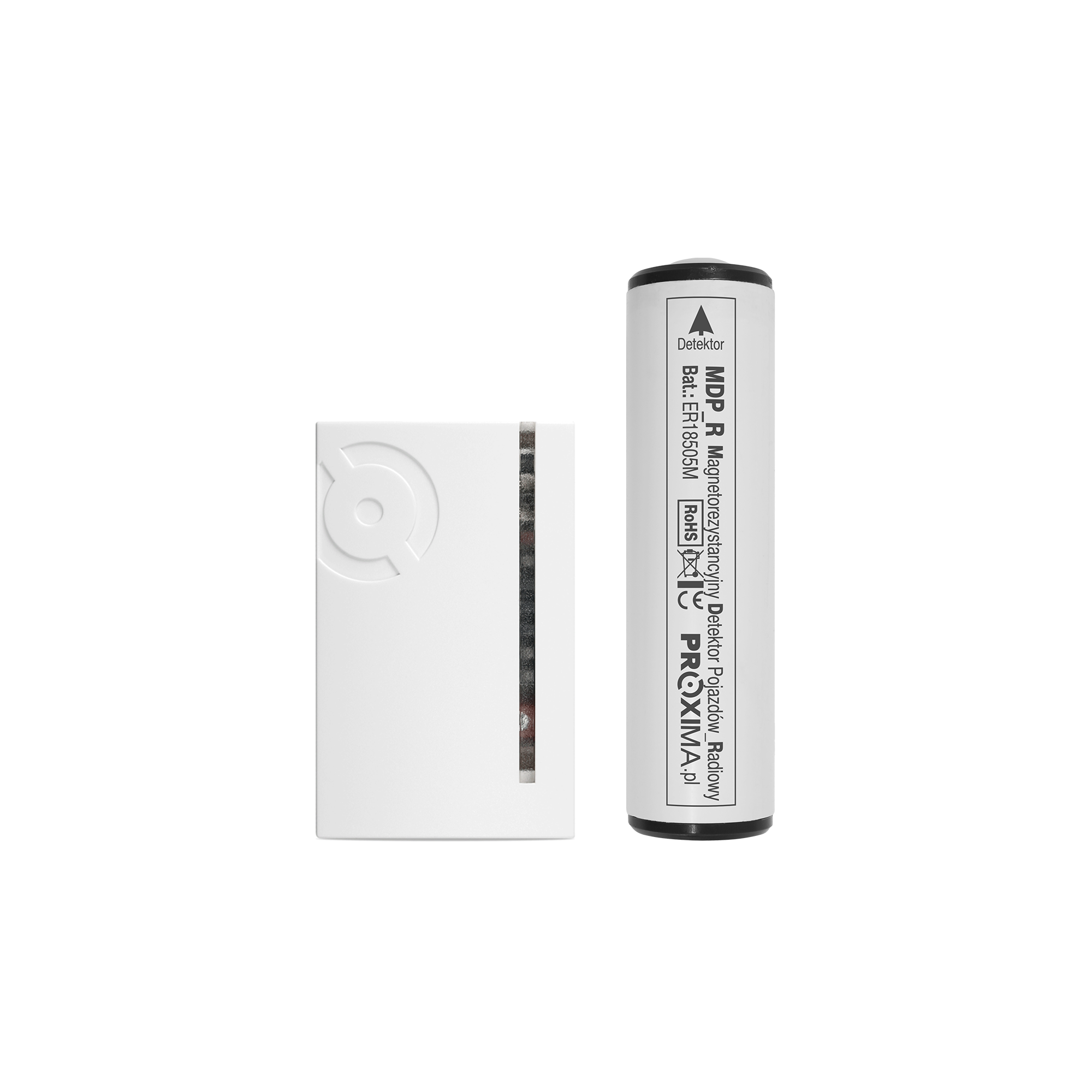

Basic information MDP_R This wireless, magnetoresistive vehicle detector replaces the induction loop. It has a built-in sensor that detects moving vehicles (up to 20 km/h) and vehicles that have been parked for extended periods. The MDP_R consists of a battery-powered probe with a lifespan of up to 5 years and a controller. The devices communicate by radio (bidirectionally) over a distance of several meters. The controller has two PK relay channels and enables simultaneous, independent operation with two probes. LEDs indicate the channel relay status and the level of activation detected during the ramp. Additionally, the controller's buzzer can signal PK channel activation. Note: The detector is not intended for use as a security system. Functions: For each registered probe, you can set a detection level, after which the probe sends information to the controller,Configuration is done using a button, LEDs and a buzzer,It is possible to select one of seven detector operation scenarios:– entry, delayed by the T pulse after entry,– descent, delayed T impulse after descent,– approach and exit, T impulse after entry and t after exit,– stopped when stop for more than t – T pulse,– present, impulse as long as the vehicle is present,– change, delayed T impulse after change,– probe failure, impulse as long as failure.
