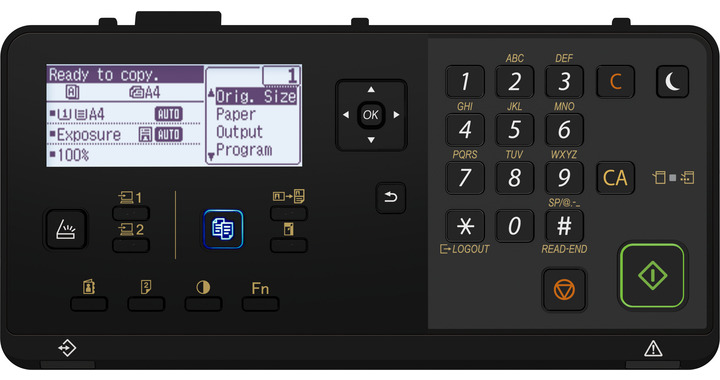

Description Type Desktop Engine speed A4 (8 1/2″ x 11″)*1 Max. 24 ppm A3 (11″ x 17″) Max. 12 (11) ppm Control panel display 5-line LCD Paper size Max. A3 (11″ x 17″), min. A6*2 (5 1/2″ x 8 1/2″) Paper capacity (80 g/m2) Standard 350 sheets (250-sheet tray and 100-sheet multi bypass tray) Maximum 1,850 sheets (350 sheets & optional 3 x 500-sheet tray) Paper weight Tray 1 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond) Trays 2–4 60 g/m2 to 200 g/m2 (16 lbs bond to 110 lbs index) Multi bypass tray 55 g/m2 to 200 g/m2 (13 lbs bond to 110 lbs index) Warm-up time*3 25 sec. Memory 1 GB (copy/print shared) Power requirements Rated local AC voltage ±10%, 50/60 Hz Power consumption Max. 1.2 kW Dimensions (W x D x H) 599 x 608 x 511 mm (23 19/32″ x 23 15/16″ x 20 1/8″) Weight (approx.) 29 kg (64.0 lbs) Copier Original paper size Max. A3 (11″ x 17″) First copy time*4 6.4 sec. Continuous copy Max. 999 copies Resolution Scan 400 x 600 dpi Print 600 x 600 dpi Gradation Equivalent to 256 levels Zoom range 25% to 400% in 1% increments Preset copy ratios Metric 10 ratios (5R/5E) Inch 8 ratios (4R/4E) Scanner Scan method Push scan (via control panel) Pull scan (TWAIN-compliant application) Resolution Push scan 100, 150, 200, 300, 400, 600 dpi*5 Pull scan 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*6 File formats TIFF, PDF, JPEG*7 Scan destinations Scan to email/desktop*8/FTP server/network folder (SMB)/USB drive Printer Resolution 600 x 600 dpi Interface USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n)*9 Supported OS*10 Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows 8.1, Windows 10, Windows 11, Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12, 13, 14 Network protocols TCP/IP Printing protocols LPR, Raw TCP (port 9100), FTP for downloading print files, IPP, SMB, WSD PDL Standard PCL 6 emulation Option PostScript 3 emulation Available fonts 80 fonts for PCL, 136 fonts for PostScript 3 emulatio
