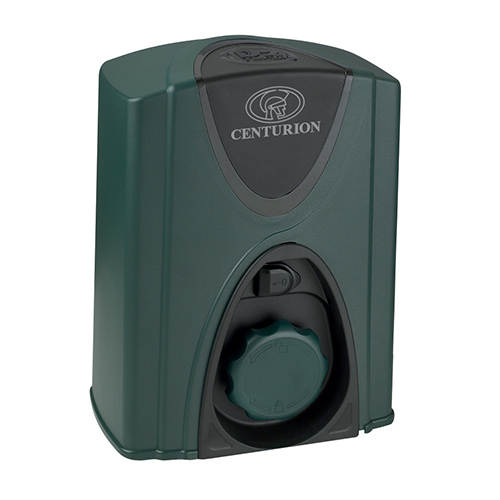

Aero Centurion D2 Turbo Motor for Sliding Gate Automation Prepare for your sliding gate to be turbocharged. The D2 Turbo is a high-speed, cost-effective operator for domestic gates weighing up to 250kg, with a maximum speed of 400 millimetres per second and powerful peak push force rated at 9kgf. This operator is exceptionally quick and easy to install and set up, with all settings easily configurable via two dials on the controller. With loads of features, the D2 Turbo is the complete motor for a standard, domestic four metre gate. D2 TURBO TECHNICAL DATA: DESCRIPTION Technical Data D2 Turbo D2 Turbo Low-voltage Input voltage 1 90V– 240V AC ±10%, 50Hz 10V – 20V AC ±10%, 50Hz; 10V – 28V DC Motor voltage 12V DC 12V DC 3 Motor power supply 4 Battery-driven (standard capacity – 12V 5Ah) Battery-driven (standard capacity – 12V 5Ah) Current consumption (mains) Intergral with controller 1A @ 13.7V /- 1% Intergral with controller 1A @ 13.7V /- 1% (Input voltage > 15V AC) Current consumption (motor at rated load) 8/12A 8/12A Current consumption (quiescent load) 95mA 95mA Operator push force Starting 18kgf 18kgf Rated 8kgf 8kgf Gate mass – maximum 250kg 250kg Gate length – maximum 20m 20m Gate speed – m/min 6 22 – 26m/min 22 – 26m/min Gate speed – mm/sec 367 – 433mm/sec 367 – 433mm/sec Drive Pinion 17T Module 4 17T Module 4 Maximum daily cycle 10 cycles/day 10 cycles/day Design life 30 000 cycles 30 000 cycles Operations in standby with standard battery 4, 5 Half day 60 cycles 60 cycles Full day 40 cycles 40 cycles Collision sensing Electronic Electronic Operating temperature -15°C to 50°C -15°C to 50°C Degree of protection IP54 IP54 Controller incorporated D2 Controller_H D2 Controller_L Onboard receiver type NOVA code-hopping onboard, multichannel NOVA code-hopping onboard, multichannel Receiver frequency 433.92MHz 433.92MHz Receiver code storage capacity 32 transmitter buttons 32 transmitter buttons Mass of unit packed 5kg 5kg Packaging dimensions Length: 255mm x Width: 188mm x Height: 333mm Length: 255mm x Width: 188mm x Height: 333mm 1. Can operate off a solar supply, consult Centurion Systems for assistance on the requirements of individual installations 2. Plug-in transformer 3. Solar panel 4. Can increase battery capacity for longer standby times 5. Based on 4m gate with no external accessories such as infrared Safety Beams 6. Gate operating speed can be configured to run at a slower, 16m/min, depending
