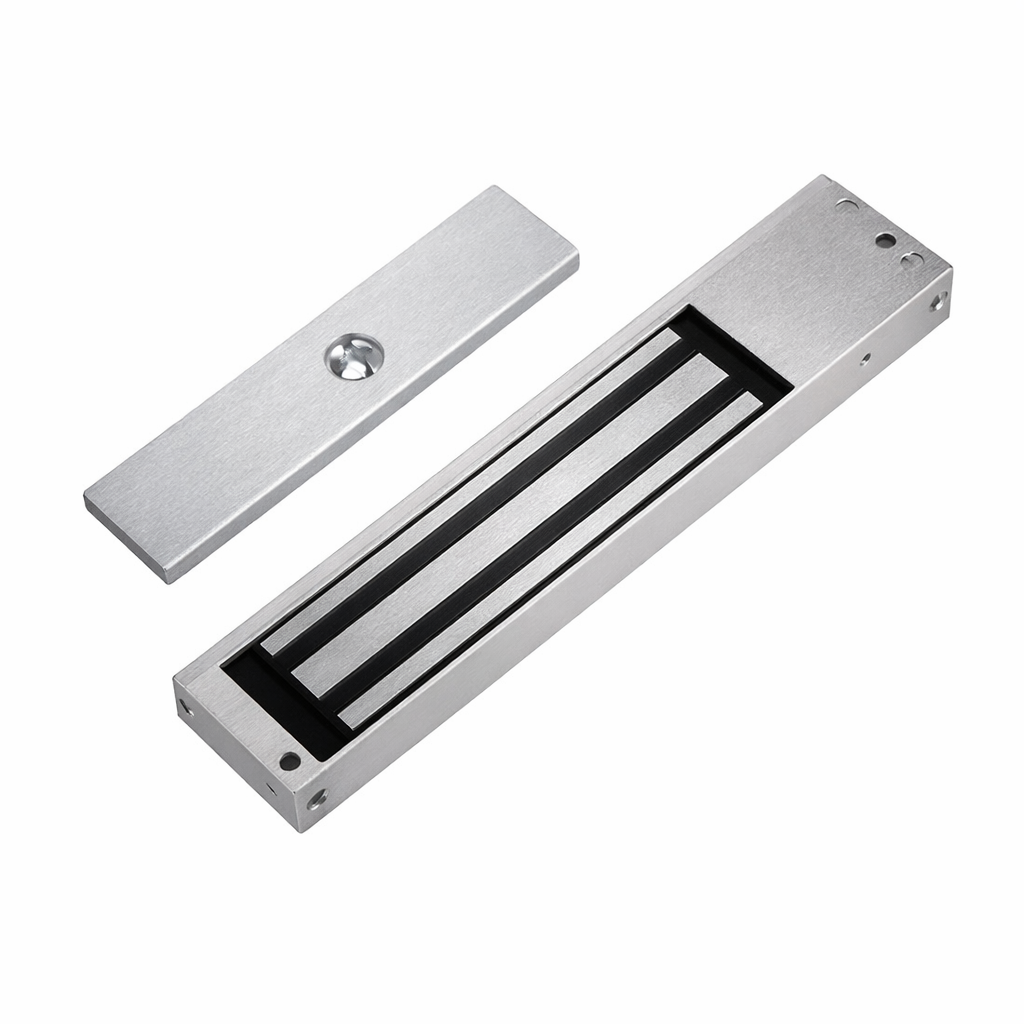

Electric magnet latch Features and Benefits: Operating voltage: 12Vdc Aluminium construction Current draw: 500mA at 12Vdc (at temperature 20°C) Operating temperature: -10 to 55°C (14 to 131°F) Humidity: 0 to 95% non-condensing Lock’s surface temperature: ambient temperature ±20% (when power is on) Holding force: Up to 600lbs (272kg) Weight: 2.0kg (approx) Typical Applications Access control door magnets can be used across various domestic and commercial applications and offer solutions where a high security level is required. In some environments doors are required to be held open under normal conditions and them automatically released in the event of fire alarms and evacuation. Door magnets ensure that doors close automatically, and are securely closed. Magnetic door holders are suitable for a range of applications, such as schools, nursing homes, and hospitals, to form part of a high quality security system.
