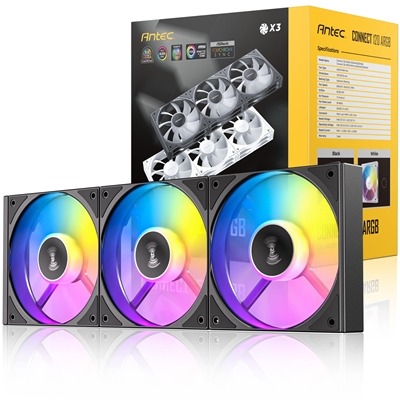

Description CONNECT 120 ARGB INTUITIVE INTERLOCKING SYSTEMConnect the fans internally with each other to streamline the installation process 3 FANS 4 SCREWSInterlocking system helps you mount multiple fans using less screws. EASIER INSTALLATION WITH LESS CABLESDaisy Chain design with less cables needed. PWM ARGB FANStrong and stable airflow in quiet operation. ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS8 anti-vibration pads effectively reduce vibration and noise. FAN INSTALLATIONattention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector. ARGB LIGHTING EFFECT SYNCExtendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components. Specification Fan TypeARGB PWM Fan Dimensions120 x 120 x 25 mm Bearing TypeHydraulic Bearing Fan Speed800±10%~ 1500±10% RPM Airflow65.08 CFM Air Pressure1.7 mmH2O Fan Noise Level28 dB(A) Lifespan30,000/ hrs 25°C ConnectorFAN: 4-pin PWMLED: 3-pin Rated VoltageFAN: DC 12 VLED : DC 5 V Operation VoltageFAN: DC 6.0-13.2 VLED : DC 4.5-5.2 V Rated CurrentFAN: = 0.29ALED : = 0.28A Warranty1 year
