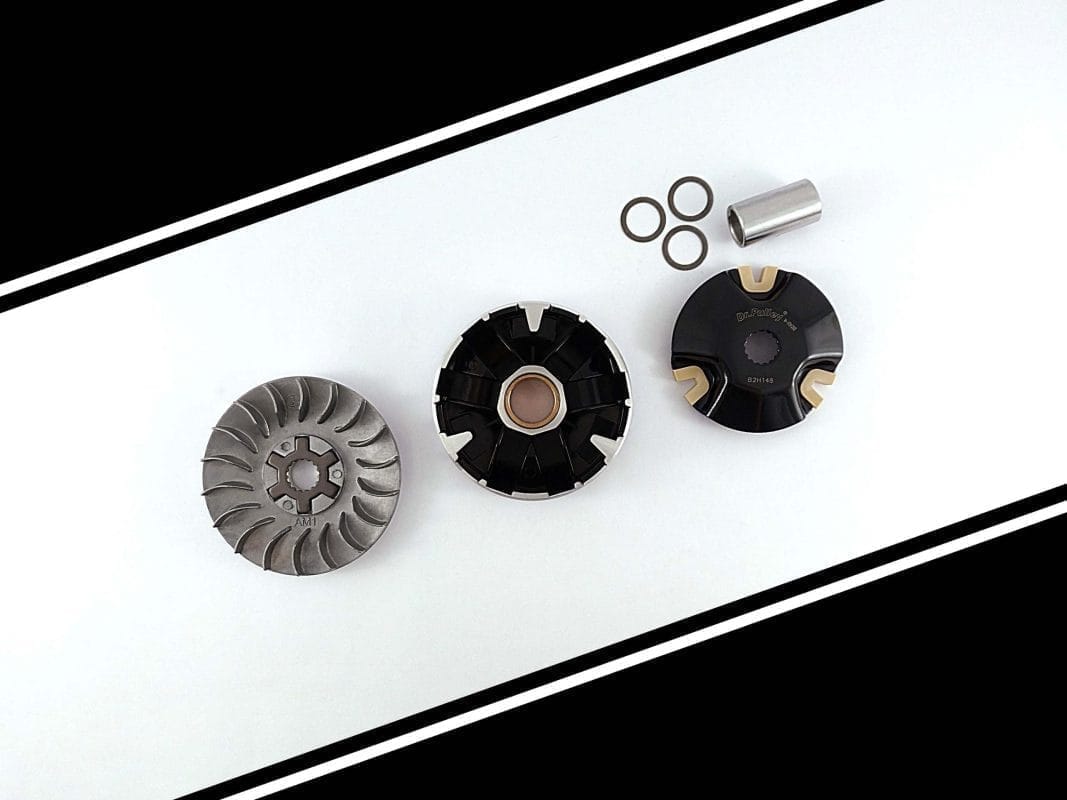

Dr.Pulley » Over Range Variator Kit 151202, EV151202, Yamaha Jog 90Over Range Variator Kit 151202, EV151202, Yamaha Jog 90 See the extraordinary in the ordinary. Take this variator, all you see are sleek surface, curves and lines. Simple. This over-range variator is designed to give you another improvement in the transmission system. With a large moveable drive face as well as the extended ramp, the roller weights can go further and your vehicle goes faster. The gear ratio change is much more efficient. You may use stock roller weights in this variator if you wish. Of course, it will be a great companion with our SR. Combine both of them, and then the movable drive face can open wider and you can go faster You will see how easy it is to start tuning up your vehicle. With the washers in the box, you may also change the boss length as your prefer, to get the ideal room for your variator to work the best. So, take out the old stock variator and get more possibility out of your vehicle. Everything is under your control. If you already have Dr.Pulley roller weights, it's time to get the over-range variator. If you haven’t tried any of Dr.Pulley products, you can always get both of them and improve the transmission in one shot. Introduction ➔ Over Range Variator Kit ➔ Variator Boss ➔ What is the effect of the burrs on the Ramp Plate? Weight Rollers life ➔ V-belt might be worn by the inner portion of the CVT housing ➔ Does the bushing of Variator need grease? ➔ If Variator Boss length is too short ➔ Replacing of Dr.Pulley Variator – Burgman400 ➔ CVT Acceleration Curves – Basic Concept Match Over Range Variator Kit 151202, EV151202 It can be matched Sliding Roller Weight 15×12-6, SR1512-6 Round Roller Weight 15×12-6, RR1512-6 Slide Piece D, SP-D Dimension Over Range Variator Kit 151202, EV151202 Important Notice: The variator kit installed in the same scooter might be different, due to year models or small modifications for different markets. So we provide the basic dimensions of whole variator components, for your reference to prevent the possibility of not being able to install Before you order the Variator Kit, please check all Variator dimensions, such as (1) Diameter of MDF and Fan (2) ID of Boss (3) Dimensions of combined Hole/ Gear on Ramp Plate to make sure the complete Variator Kit can be fitted in your CVT housing without any problem. If you do not have the resources at hand and do not have the expertise to disassemble and confirm the specifications, asking your local suppliers is also an option. Variator A An Outside Dia. Num. of Curved Ramp mm 94 6 inch 3.70 Ramp Plate B C D Root Dia. Tip Dia. Num. of Teeth mm 16 14 15 inch 0.63 0.55 Fan E F G H Outside Dia. Root Dia. Tip Dia. Num. of Teeth mm 93.7 16 14.3 15 inch 3.69 0.63 0.56 Boss I J K Outside Dia. Inside Dia. Height mm 21 16 37.5 inch 0.87 0.63 1.48 Washer L M N Outside Dia. Inside Dia. Height mm 22 16 0.3 inch 0.87 0.63 0.01 Over Range Variator Kit 151202, EV151202 Packaging Remark: Even with the same model name, vehicles may still be different in different areas or countries. Models listed are for reference. Please check with your technician before purchasing. Social Media Facebook Youtube Official LINE Applicable Models (For Reference Only) Year→ = After this Year. For example: 2022→ →Year = Before this Year. For example: →2022 Year→Year = From Year to Year. For example: 1980→2022 Your scooter model year is the year it was manufactured. (Note: it is not when you bought it, but when it was made.) Relevant question: Where are the applicable models for the parts? What if I do not find my vehicle model in the List? How to choose the right weight for Roller Weights? Make Model Cc. Year Yamaha Jog 90 90 Yamaha Vino 90 90 Make Model Cc. Year
