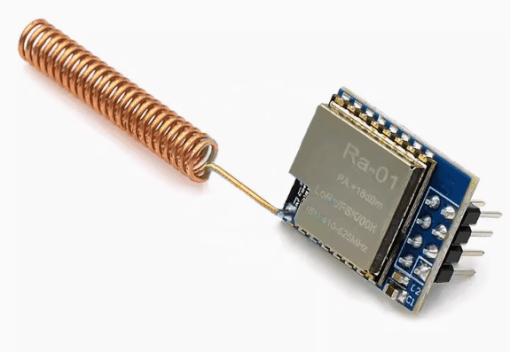

SX1278 LORA spread spectrum wireless module/433MHZ wireless serial port/UART interface/ RA-01

Description SX1278 LORA spread spectrum wireless module/433MHZ wireless serial port/UART interface/ RA-01 Antenna Connection: Solderable Pad RF Transceiver: Semtech SX1268 Operating Voltage: 2.5 ~ 3.7VDC Operating Current (Max): ~140mA Receive Mode Current (Min): ~4.6mA Standby Mode Current: ~1.6mA Comms Interface: SPI Frequency Range: 410 – 525MHz Receive Sensitivity: As low as -148dBm Max Transmit Power:  22dBm Bit Rate: Programmable up to 300kbps Modulation Types: FSK, GFSK, MSK, GMSK, LoRa and OOK Notable Features: Excellent blocking immunity and additional shielding Operating Temperature: -40°C to 85°C
