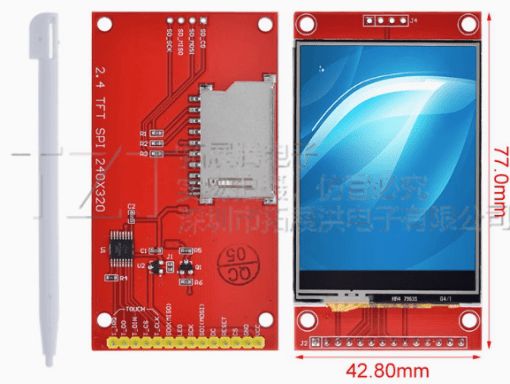

Description It is a 2.4″ SPI TFT LCD Screen Module 10pins interface. Not just an LCD break but include SD card slot, The LCD drive ic is ILI9341. It’s a 240 * 320 (resolution), 2.4 inch TFT LCD screen. The LCD has a wide viewing angle, the contrast is also very suitable. The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling. SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.
